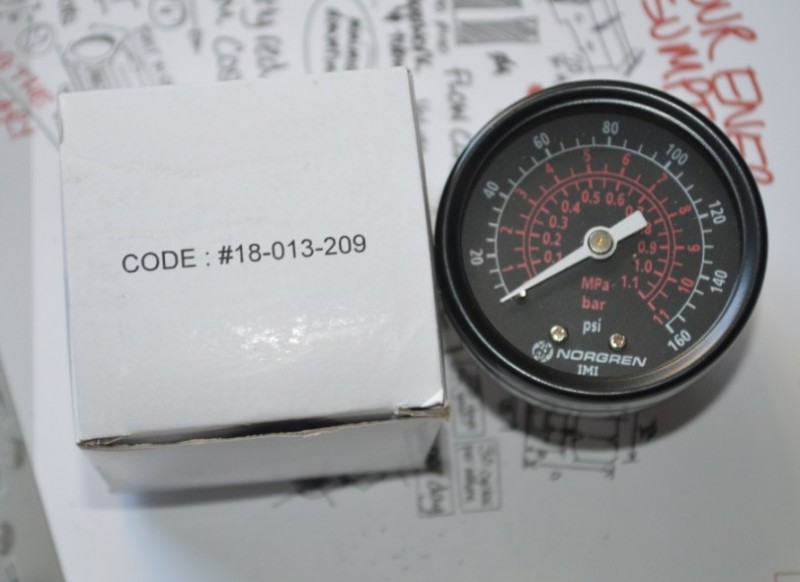

18-013-209 norgren壓力表

上海突越機械設備有限公司

會員指數：

企業認證：

價格：電議

所在地：上海

型號：18-013-209

更新時間：2020-05-11

瀏覽次數：1145

公司地址：上海青浦區

15801953825 杜先生(先生) 銷售經理

點擊查看聯系電話在線詢價

產品簡介

norgren壓力表，18-013-204監測系統壓力以zui率三種表面刻度：bar, psi Mpa (兆帕)可選壓力范圍可直接安裝或者面板安裝符合BS ISO837-1工業標準塑料或者不銹鋼殼體

公司簡介

上海突越機械設備有限公司是一家專業從事英國IMI Norgren及其下屬品牌技術咨詢，產品經銷、售后服務為一體，經國家相關部門批準注冊的企業。公司主要經營諾冠Norgren、海隆Herion、寶碩Buschjost氣動元件。

涉及產品系列有：執行元件、電磁閥、壓力開關、空氣處理設備、接頭、硬管及附件等；公司產品均為諾冠亞太中心直接提供，為正規渠道原裝全新產品。

作為Norgren華東地區核心經銷商，我們一直專業服務于軌道交通、冶金、包裝、醫療、汽車、紡織、化工、電力、煉鋁、噴墨技術、鋼鐵、水泥等行業，相信我們的服務和產品為您帶來全新的體驗和更高的生產力！

突越機械全體員工期待與您合作！

展開

產品說明

● Monitor pressures in compressed air systems for

optimum efficiency

● Dual calibrated dials, available for direct or panel

mounting

● Choice of pressure ranges

● Conform to BS 1780 : Part 2, Industrial Class 2

● Range includes Miniature type, 40 mm, pressure

gauge suitable for use with Norgre

Technical Data

Medium:

Compressed air, oil and gases or liquids which do not corrode

copper alloys

Operating Temperature:

–20?C* to +60?C

*Consult our Technical Service for use below +2?C

Operating Pressure:

0 - 1,6 bar

0 - 4 bar

0 - 6 bar

0 - 10 bar

0 - 25 bar

Ordering Information

To order a standard Pressure Gauge, quote model number

from table overleaf.

For non-standard models please consult our Technical Service.

Warning

These products are intended for use in industrial compressed air systems only. Do not

use these products where pressures and temperatures can exceed those listed under

‘Technical Data’.

Before using these products with fluids other than those specified, for non-industrial

applications, life-support systems, or other applications not within published

specifications, consult NORGREN MARTONAIR.

Through misuse, age, or malfunction, components used in fluid power systems can fail in

various modes. The system designer is warned to consider the failure modes of all

component parts used in fluid power systems and to provide adequate safeguards to

prevent personal injury or damage to equipment in the event of such failure.

System designers must provide a warning to end users in the system instructional

manual if protection against a failure mode cannot be adequately provided.

System designers and end users are cautioned to review specific warnings found in

instruction sheets packed and shipped with these products.

監測系統壓力以zui率

三種表面刻度：bar, psi Mpa (兆帕)

可選壓力范圍

可直接安裝或者面板安裝

符合BS ISO837-1工業標準

塑料或者不銹鋼殼體

0 ... 1,6 40 背面中心 R1/8 18-013-991

0 ... 4 40 背面中心 R1/8 18-013-990

0 ... 10 40 背面中心 R1/8 18-013-989

0 ... 25 40 背面中心 R1/8 18-013-908

0 ... 1,6 50 背面中心 R1/8 18-013-010

0 ... 4 50 背面中心 R1/8 18-013-011

0 ... 6 50 背面中心 R1/8 18-013-012

0 ... 10 50 背面中心 R1/8 18-013-013

0 ... 25 50 背面中心 R1/8 18-013-014

0 ... 10 63 背面中心 R1/8 18-013-856

0 ... 16 63 背面中心 R1/8 18-013-855

0 ... 6 50 C/B 面板安裝 G1/8A 18-013-858

0 ... 10 50 C/B 面板安裝 G1/8A 18-013-857

0 ... 10 63 C/B 面板安裝 G1/4A 18-013-852

0 ... 16 63 C/B 面板安裝 G1/4A 18-013-851

0 ... 1,6 50 底部 R1/8 18-013-024

0 ... 4 50 底部 R1/8 18-013-025

0 ... 6 50 底部 R1/8 18-013-026

0 ... 10 50 底部 R1/8 18-013-027

0 ... 25 50 底部 R1/8 18-013-028

0 ... 10 63 底部 G1/4A 18-013-854

0 ... 16 63 底部 G1/4A 18-013-853
