SWP-ASR302-1-0 昌暉真彩無紙記錄儀

鄭州亞比蘭儀器儀表有限公司
會員指數： 企業認證：

價格：電議

所在地：河南 鄭州市

型號：SWP-ASR302-1-0

更新時間：2016-10-12

瀏覽次數：1064

公司地址：河南省鄭州市中原區長城新干線10號樓1604

王琦(女士)

產品簡介

SWP-ASR303-1-0/C2 SWP-ASR303-1-0/C3 SWP-ASR303-1-0/P1SWP-ASR303-1-0/P2 SWP-ASR303-1-0/P3 SWP-ASR303-1-0/AO1SWP-ASR303-1-

公司簡介


SWP香港昌暉，F(xiàn)&B福建百特工控，WP香港上潤，HR-WP,NHR虹潤儀表，麥克傳感器代理
鄭州亞比蘭儀表儀器
展開

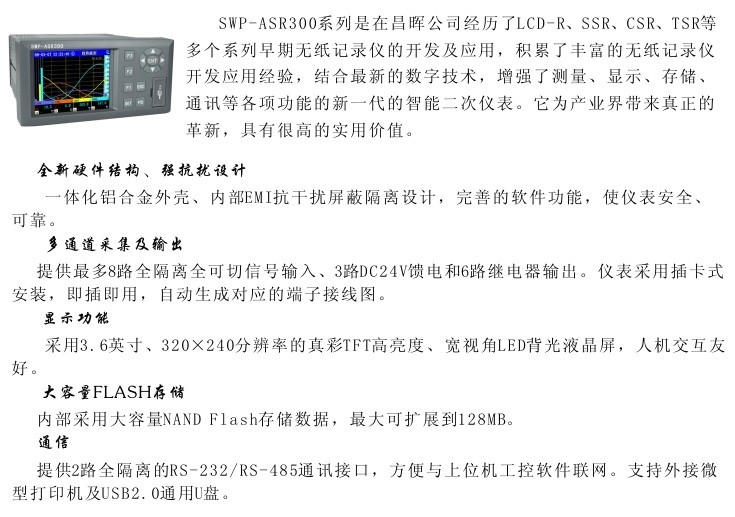

產品說明


SWP-ASR303-1-0/C2  SWP-ASR303-1-0/C3  SWP-ASR303-1-0/P1
SWP-ASR303-1-0/P2  SWP-ASR303-1-0/P3  SWP-ASR303-1-0/AO1
SWP-ASR303-1-0/AO2 SWP-ASR303-1-0/AO3 SWP-ASR303-1-0/AO4
SWP-ASR303-1-0/F1  SWP-ASR303-1-0/F2  SWP-ASR303-1-0/F3
SWP-ASR303-1-0/F4  SWP-ASR303-1-0/J1  SWP-ASR303-1-0/J2
SWP-ASR303-1-0/J3  SWP-ASR303-1-0/J4  SWP-ASR303-1-0/J5
SWP-ASR303-1-0/J6  SWP-ASR303-1-0/J7  SWP-ASR303-1-0/J8
SWP-ASR303-1-0/J9  SWP-ASR303-1-0/J10 SWP-ASR303-1-0/J11
SWP-ASR303-1-0/J12 SWP-ASR303-1-0/JB1 SWP-ASR303-1-0/JB2



技術指標

規   格
說          明
輸
入
模
擬
量
熱電偶
B、S、K、E、T、J、W
RTD
PT100、CU50
電壓
DC 0-5V， DC 1-5V，  DC 0-100mV， DC 0-20mV
電流
DC 0-10mA，DC 4-20mA
脈沖量
矩形/正弦/三角            幅度≥ 4V       頻率 0 — 15KHz
輸
出
模
擬
量
電流
0 — 10mA  (負載≤750 Ω)      4 — 20mA  (負載≤500 Ω)
電壓
0 — 5V      (負載≥250 kΩ)     1 — 5V      (負載≥250 kΩ)
開
關
量
SSR
6 – 9V/0.0
SCR
400V/0.
繼電器
AC 220V/3A或DC 24V/  (阻性負載)
饋   電
DC 24V / 60mA(多三路)
通
訊
波特率
1200 — 115200pbs
接口
RS232，RS485(共兩路可同時選擇)，帶全隔離高速磁耦
協議
MODBUS-RTU， SR-BUS(SWP儀表通訊協議)
精    度
0.5 %FS±1字 或 0.2%FS±1字
小信號切除
0 — 25.5%FS
測量范圍
-1999 — 99999字
采樣周期
0.25秒
記錄間隔
1秒 — 4分鐘之間以秒為單位共240檔可供選擇
參數設定
全中文菜單提示，通過按鍵或上位機通訊口設定
控制方式
可選擇帶回差的ON/OFF繼電器觸點輸出(AC220V/3A)
打印功能
可外接面板式、臺式帶串口輸出的40字符/行的寬行微型打印機(如TPμP-A40)，打印歷史數據、曲線或?qū)崟r數據。
顯示方式
3.6寸LED背光大屏幕真彩液晶(320×240點陣)圖形顯示由漢字、西文、趨勢曲線、光柱等組成顯示內容。
報警功能
每個通道多可以設定4個報警點，每個報警點可選擇上限、下限、變化率上限、變化率下限、差值下限和差值上限報警，可設置報警輸出延時時間、報警回差、繼電器觸點輸出(多36個繼電器可用）、蜂鳴器輸出，還可設置外接報警音響觸點和報警屏自動切換功能，儀表保存新的2000條報警信息。
保護方式
設定參數保存，記錄數據斷電保存，內置看門狗電路，掉電時數據預先保存
語    言
中文(簡、繁體)、英文，內置GB2312二級漢字庫，包含6500個漢字
使用
環境
環境溫度
-15 ℃— 60 ℃
相對濕度
≤ 85%RH 、避免強腐蝕性氣體
電源電壓
AC 90 — 265V (50 — 60Hz)
安   裝
儀表尺寸
168×80×103 mm
開孔尺寸
151+1 ×76+1 mm
安裝方式
卡條式固定架
功   耗
≤ 20W
重   量
約2000 g

型譜表

常見問題FAQ
問：ASR系列儀表較以前的儀表有何？
答：ASR系列儀表硬件重新設計，功耗更低、軟件功能更強、支持通用U盤、存儲容量顯著擴大、人機交互界面更友好、更高。
問：ASR系列儀表可以存多少天數據？
答：這要根據儀表配置的FLASH容量、采集路數以及記錄間隔決定，可參考下表：
容量（MB）
記錄間隔(S)
通道數
大約可記錄天數(天)
32
(出廠基本配置)
10
1
683
2
341
4
170
8
82
240
1
16401
2
8200
4
4100
8
1984
64
（可擴展）
10
1
1594
2
797
4
398
8
192
240
1
38037
2
19134
4
9567
8
4629
128
（可擴展）
10
1
3415
2
1705
4
850
8
410
240
1
82005
2
41000
4
20500
8
9920
    當內存容量為32MB、1路全可切通道、記錄間隔為1秒時，可記錄約68天。用戶用此計算，如用戶定制儀表的內存容量為32MB、10路全可切通道、記錄間隔為2秒時，可記錄約68÷5×2=27.3天。
問：ASR系列儀表數據如何保存？
答：ASR系列儀表采用A++級快閃存儲器（Nand Flash）作為內部存儲介質，不需后備電池，可掉電保存。記錄數據采用壓縮算法保存，保證記錄數據不失真。每個記錄點保存測量間隔時間內數值的zui大值和zui小值，即使數值瞬間突變也可以保存記錄。
問：ASR系列儀表是否支持U盤？
答：ASR系列儀表支持目前市售的通用2.0或1.1接口容量在32GB以下的U盤，但由于目前市場上的U盤魚龍混雜，存在較多偽劣產品，故我司推薦您使用、正規產品，保護您的合法利益。
問：ASR系列儀表有哪幾種報警方式？
答：ASR系列儀表目前共有：上限報警（H）、下限報警（L）、變化率上限報警（R）、變化率下限報警、差值上限報警和差值下限報警等6種類型，同時儀表有報警顯示和報警輸出，具體設置方法參見儀表說明書P4。
問：ASR系列儀表支持哪幾種通訊協議？
答：ASR系列儀表目前支持2種協議：標準Modbus和SR-bus（我司內部協議），可方便的與組態軟件通訊。ASR系列儀表有2個全隔離，高速通訊口，zui高波特率達到115200 bps，2個通訊口可分別為RS-232H和RS-485，具體設置方法參見儀表說明書P65。
問：ASR系列儀表可以在線打印數據嗎？
答：ASR系列儀表在外接40字符/行的微打后，用戶可以打印“歷史曲線”、“歷史數據”、“實時數據”。用戶也可以設置打印開始及結束時間、定時打印間隔。具體設置方法參見儀表說明書P20。
型號對比
對比參數
ASR100系列
ASR200系列
ASR300系列
ASR400系列
ASR500系列
顯
示
部
分
液晶屏尺寸及類型
5.6寸真彩TFT屏
LED背光
10.4寸真彩TFT屏
CCFL背光
3.6寸真彩TFT屏
LED背光
3.6寸真彩TFT屏
LED背光
5.6寸藍白TFT屏
LED背光
顯示
分辨率
320×234
640×480
320×240
240×320
320×234
多語言
顯示
支持簡、繁、英以及多語言切換
支持簡、繁、英以及多語言切換
支持簡、繁、英以及多語言切換
支持簡、繁、英以及多語言切換
支持簡、繁、英以及多語言切換
記錄曲線顯示
橫向、縱向，模擬走紙，顯示區域放大，自動切換畫面，自定義分組
橫向、縱向，模擬走紙，顯示區域放大，自動切換畫面，自定義分組
橫向、縱向，模擬走紙，顯示區域放大，自動切換畫面，自定義分組
橫向、縱向，模擬走紙，顯示區域放大，自動切換畫面，自定義分組
橫向、縱向，模擬走紙，顯示區域放大，自動切換畫面，自定義分組
屏保
功能
有
有
有
有
有
多種類型輸入方式
拼音、數字、英文大小寫、特殊字符
拼音、數字、英文大小寫、特殊字符
拼音、數字、英文大小寫、特殊字符
拼音、數字、英文大小寫、特殊字符
拼音、數字、英文大小寫、特殊字符
定制開機畫面
支持
支持
支持
支持
支持
儀表配置圖及接線圖
有
有
有
有
有
顯示測量數據范圍
-9999 ～ 99999
-9999 ～ 99999
-9999 ～ 99999
-9999 ～ 99999
-9999 ～ 99999
輸
入
部
分
zui大輸入通道數
12
48
8
8
12
信號
全可切
支持
支持
支持
支持
支持
測量度
0.2%FS±1字或
0.5%FS±1字
0.2%FS±1字或
0.5%FS±1字
0.2%FS±1字或
0.5%FS±1字
0.2%FS±1字或
0.5%FS±1字
0.2%FS±1字或
0.5%FS±1字
zui小采樣時間
0.25
0.25
0.25
0.25
0.25
zui小記錄時間
1
1
1
1
1
自定義
工位號
及單位
支持
支持
支持
支持
支持
輸出部分
zui大饋電路數
3
6
3
3
3
zui大繼電器數
12
24
6
6
12
zui大變送輸出路數
4
12
2
2
4
數據存儲
基本FLASH容量（MB）
32
32
32
32
32
zui大FLASH容量（GB）
1
1
1
1
1
U盤轉存
支持
支持
支持
支持
支持
通
訊
部
分
RS232及RS485
支持
（高速、全隔離）
支持
（高速、全隔離）
支持
（高速、全隔離）
支持
（高速、全隔離）
支持
（高速、全隔離）
支持通訊協議
Modbus和SRbus
Modbus和SRbus
Modbus和SRbus
Modbus和SRbus
Modbus和SRbus
打印功能
支持
支持
支持
支持
支持
波特率
1200 ～ 115200
1200 ～ 115200
1200 ～ 115200
1200 ～ 115200
1200 ～ 115200
zui大通訊口數
2
2
2
2
2
電
源
供電
AC 90～265
AC 90～265
AC 90～265
AC 90～265
AC 90～265
功耗
≦20
≦40
≦15
≦15
≦20
擴
展
部
分
通道運算功能
支持
支持
支持
支持
支持
流量、熱能積算
（帶溫、壓補償）
支持
支持
支持
支持
支持
流量
報表功能
有
有
有
有
有
上位機分析軟件
有
有
有
有
有
其
它
部
分
重量
3000
8600
2000
2000
3000
安裝
方式
卡條安裝
卡條安裝
卡條安裝
卡條安裝
卡條安裝
開孔尺寸
138+1×138+1
208+1×208+1
151+1×76+1
76+1×151+1
138+1×138+1
外形尺寸
144×144×180
288×288×240
160×80×183
80×160×183
144×144×180

          SWP-A303-1-0/C2  SWP-ASR303-1-0/C3  SWP-ASR303-1-0/P1
SWP-ASR303-1-0/P2  SWP-ASR303-1-0/P3  SWP-ASR303-1-0/AO1
SWP-ASR303-1-0/AO2 SWP-ASR303-1-0/AO3 SWP-ASR303-1-0/AO4
SWP-ASR303-1-0/F1  SWP-ASR303-1-0/F2  SWP-ASR303-1-0/F3
SWP-ASR303-1-0/F4  SWP-ASR303-1-0/J1  SWP-ASR303-1-0/J2
SWP-ASR303-1-0/J3  SWP-ASR303-1-0/J4  SWP-ASR303-1-0/J5
SWP-ASR303-1-0/J6  SWP-ASR303-1-0/J7  SWP-ASR303-1-0/J8
SWP-ASR303-1-0/J9  SWP-ASR303-1-0/J10 SWP-ASR303-1-0/J11
SWP-ASR303-1-0/J12 SWP-ASR303-1-0/JB1 SWP-ASR303-1-0/JB2

SWP-ASR303-1-0/C2  SWP-ASR303-1-0/C3  SWP-ASR303-1-0/P1
SWP-ASR303-1-0/P2  SWP-ASR303-1-0/P3  SWP-ASR303-1-0/AO1
SWP-ASR303-1-0/AO2 SWP-ASR303-1-0/AO3 SWP-ASR303-1-0/AO4
SWP-ASR303-1-0/F1  SWP-ASR303-1-0/F2  SWP-ASR303-1-0/F3
SWP-ASR303-1-0/F4  SWP-ASR303-1-0/J1  SWP-ASR303-1-0/J2
SWP-ASR303-1-0/J3  SWP-ASR303-1-0/J4  SWP-ASR303-1-0/J5
SWP-ASR303-1-0/J6  SWP-ASR303-1-0/J7  SWP-ASR303-1-0/J8
SWP-ASR303-1-0/J9  SWP-ASR303-1-0/J10 SWP-ASR303-1-0/J11
SWP-ASR303-1-0/J12 SWP-ASR303-1-0/JB1 SWP-ASR303-1-0/JB2

SWP-ASR303-1-0/JB3 SWP-ASR303-1-0/JB4 SWP-ASR303-1-0/JB5
SWP-ASR303-1-0/JB6 SWP-ASR303-1-0/JB7 SWP-ASR303-1-0/JB8
SWP-ASR303-1-0/L   SWP-ASR303-1-0/T   SWP-ASR303-1-0/U
SWP-ASR303-1-0/PID
SWP-ASR303-1-1/C2  SWP-ASR303-1-1/C3  SWP-ASR303-1-1/P1
SWP-ASR303-1-1/P2  SWP-ASR303-1-1/P3  SWP-ASR303-1-1/AO1
SWP-ASR303-1-1/AO2 SWP-ASR303-1-1/AO3 SWP-ASR303-1-1/AO4
SWP-ASR303-1-1/F1  SWP-ASR303-1-1/F2  SWP-ASR303-1-1/F3
SWP-ASR303-1-1/F4  SWP-ASR303-1-1/J1  SWP-ASR303-1-1/J2
SWP-ASR303-1-1/J3  SWP-ASR303-1-1/J4  SWP-ASR303-1-1/J5
SWP-ASR303-1-1/J6  SWP-ASR303-1-1/J7  SWP-ASR303-1-1/J8
SWP-ASR303-1-1/J9  SWP-ASR303-1-1/J10 SWP-ASR303-1-1/J11
SWP-ASR303-1-1/J12 SWP-ASR303-1-1/JB1 SWP-ASR303-1-1/JB2
SWP-ASR303-1-1/JB3 SWP-ASR303-1-1/JB4 SWP-ASR303-1-1/JB5
SWP-ASR303-1-1/JB6 SWP-ASR303-1-1/JB7 SWP-ASR303-1-1/JB8
SWP-ASR303-1-1/L   SWP-ASR303-1-1/T   SWP-ASR303-1-1/U
SWP-ASR303-1-1/PID
SWP-ASR303-2-0/C2  SWP-ASR303-2-0/C3  SWP-ASR303-2-0/P1
SWP-ASR303-2-0/P2  SWP-ASR303-2-0/P3  SWP-ASR303-2-0/AO1
SWP-ASR303-2-0/AO2 SWP-ASR303-2-0/AO3 SWP-ASR303-2-0/AO4
SWP-ASR303-2-0/F1  SWP-ASR303-2-0/F2  SWP-ASR303-2-0/F3
SWP-ASR303-2-0/F4  SWP-ASR303-2-0/J1  SWP-ASR303-2-0/J2
SWP-ASR303-2-0/J3  SWP-ASR303-2-0/J4  SWP-ASR303-2-0/J5
SWP-ASR303-2-0/J6  SWP-ASR303-2-0/J7  SWP-ASR303-2-0/J8
SWP-ASR303-2-0/J9  SWP-ASR303-2-0/J10 SWP-ASR303-2-0/J11
SWP-ASR303-2-0/J12 SWP-ASR303-2-0/JB1 SWP-ASR303-2-0/JB2
SWP-ASR303-2-0/JB3 SWP-ASR303-2-0/JB4 SWP-ASR303-2-0/JB5
SWP-ASR303-2-0/JB6 SWP-ASR303-2-0/JB7 SWP-ASR303-2-0/JB8
SWP-ASR303-2-0/L   SWP-ASR303-2-0/T   SWP-ASR303-2-0/U
SWP-ASR303-2-0/PID
SWP-ASR303-2-1/C2  SWP-ASR303-2-1/C3  SWP-ASR303-2-1/P1
SWP-ASR303-2-1/P2  SWP-ASR303-2-1/P3  SWP-ASR303-2-1/AO1
SWP-ASR303-2-1/AO2 SWP-ASR303-2-1/AO3 SWP-ASR303-2-1/AO4
SWP-ASR303-2-1/F1  SWP-ASR303-2-1/F2  SWP-ASR303-2-1/F3
SWP-ASR303-2-1/F4  SWP-ASR303-2-1/J1  SWP-ASR303-2-1/J2
SWP-ASR303-2-1/J3  SWP-ASR303-2-1/J4  SWP-ASR303-2-1/J5
SWP-ASR303-2-1/J6  SWP-ASR303-2-1/J7  SWP-ASR303-2-1/J8
SWP-ASR303-2-1/J9  SWP-ASR303-2-1/J10 SWP-ASR303-2-1/J11
SWP-ASR303-2-1/J12 SWP-ASR303-2-1/JB1 SWP-ASR303-2-1/JB2
SWP-ASR303-2-1/JB3 SWP-ASR303-2-1/JB4 SWP-ASR303-2-1/JB5
SWP-ASR303-2-1/JB6 SWP-ASR303-2-1/JB7 SWP-ASR303-2-1/JB8
SWP-ASR303-2-1/L   SWP-ASR303-2-1/T   SWP-ASR303-2-1/U
SWP-ASR303-2-1/PID
SWP-ASR304-1-0/C2  SWP-ASR304-1-0/C3  SWP-ASR304-1-0/P1
SWP-ASR304-1-0/P2  SWP-ASR304-1-0/P3  SWP-ASR304-1-0/AO1
SWP-ASR304-1-0/AO2 SWP-ASR304-1-0/AO3 SWP-ASR304-1-0/AO4
SWP-ASR304-1-0/F1  SWP-ASR304-1-0/F2  SWP-ASR304-1-0/F3
SWP-ASR304-1-0/F4  SWP-ASR304-1-0/J1  SWP-ASR304-1-0/J2
SWP-ASR304-1-0/J3  SWP-ASR304-1-0/J4  SWP-ASR304-1-0/J5
SWP-ASR304-1-0/J6  SWP-ASR304-1-0/J7  SWP-ASR304-1-0/J8
SWP-ASR304-1-0/J9  SWP-ASR304-1-0/J10 SWP-ASR304-1-0/J11
SWP-ASR304-1-0/J12 SWP-ASR304-1-0/JB1 SWP-ASR304-1-0/JB2
SWP-ASR304-1-0/JB3 SWP-ASR304-1-0/JB4 SWP-ASR304-1-0/JB5
SWP-ASR304-1-0/JB6 SWP-ASR304-1-0/JB7 SWP-ASR304-1-0/JB8
SWP-ASR304-1-0/L   SWP-ASR304-1-0/T   SWP-ASR304-1-0/U
SWP-ASR304-1-0/PID
SWP-ASR304-1-1/C2  SWP-ASR304-1-1/C3  SWP-ASR304-1-1/P1
SWP-ASR304-1-1/P2  SWP-ASR304-1-1/P3  SWP-ASR304-1-1/AO1
SWP-ASR304-1-1/AO2 SWP-ASR304-1-1/AO3 SWP-ASR304-1-1/AO4
SWP-ASR304-1-1/F1  SWP-ASR304-1-1/F2  SWP-ASR304-1-1/F3
SWP-ASR304-1-1/F4  SWP-ASR304-1-1/J1  SWP-ASR304-1-1/J2
SWP-ASR304-1-1/J3  SWP-ASR304-1-1/J4  SWP-ASR304-1-1/J5
SWP-ASR304-1-1/J6  SWP-ASR304-1-1/J7  SWP-ASR304-1-1/J8
SWP-ASR304-1-1/J9  SWP-ASR304-1-1/J10 SWP-ASR304-1-1/J11
SWP-ASR304-1-1/J12 SWP-ASR304-1-1/JB1 SWP-ASR304-1-1/JB2
SWP-ASR304-1-1/JB3 SWP-ASR304-1-1/JB4 SWP-ASR304-1-1/JB5
SWP-ASR304-1-1/JB6 SWP-ASR304-1-1/JB7 SWP-ASR304-1-1/JB8
SWP-ASR304-1-1/L   SWP-ASR304-1-1/T   SWP-ASR304-1-1/U
SWP-ASR304-1-1/PID
SWP-ASR304-2-0/C2  SWP-ASR304-2-0/C3  SWP-ASR304-2-0/P1
SWP-ASR304-2-0/P2  SWP-ASR304-2-0/P3  SWP-ASR304-2-0/AO1
SWP-ASR304-2-0/AO2 SWP-ASR304-2-0/AO3 SWP-ASR304-2-0/AO4
SWP-ASR304-2-0/F1  SWP-ASR304-2-0/F2  SWP-ASR304-2-0/F3
SWP-ASR304-2-0/F4  SWP-ASR304-2-0/J1  SWP-ASR304-2-0/J2
SWP-ASR304-2-0/J3  SWP-ASR304-2-0/J4  SWP-ASR304-2-0/J5
SWP-ASR304-2-0/J6  SWP-ASR304-2-0/J7  SWP-ASR304-2-0/J8
SWP-ASR304-2-0/J9  SWP-ASR304-2-0/J10 SWP-ASR304-2-0/J11
SWP-ASR304-2-0/J12 SWP-ASR304-2-0/JB1 SWP-ASR304-2-0/JB2
SWP-ASR304-2-0/JB3 SWP-ASR304-2-0/JB4 SWP-ASR304-2-0/JB5
SWP-ASR304-2-0/JB6 SWP-ASR304-2-0/JB7 SWP-ASR304-2-0/JB8
SWP-ASR304-2-0/L   SWP-ASR304-2-0/T   SWP-ASR304-2-0/U
SWP-ASR304-2-0/PID
SWP-ASR304-2-1/C2  SWP-ASR304-2-1/C3  SWP-ASR304-2-1/P1
SWP-ASR304-2-1/P2  SWP-ASR304-2-1/P3  SWP-ASR304-2-1/AO1
SWP-ASR304-2-1/AO2 SWP-ASR304-2-1/AO3 SWP-ASR304-2-1/AO4
SWP-ASR304-2-1/F1  SWP-ASR304-2-1/F2  SWP-ASR304-2-1/F3
SWP-ASR304-2-1/F4  SWP-ASR304-2-1/J1  SWP-ASR304-2-1/J2
SWP-ASR304-2-1/J3  SWP-ASR304-2-1/J4  SWP-ASR304-2-1/J5
SWP-ASR304-2-1/J6  SWP-ASR304-2-1/J7  SWP-ASR304-2-1/J8
SWP-ASR304-2-1/J9  SWP-ASR304-2-1/J10 SWP-ASR304-2-1/J11
SWP-ASR304-2-1/J12 SWP-ASR304-2-1/JB1 SWP-ASR304-2-1/JB2
SWP-ASR304-2-1/JB3 SWP-ASR304-2-1/JB4 SWP-ASR304-2-1/JB5
SWP-ASR304-2-1/JB6 SWP-ASR304-2-1/JB7 SWP-ASR304-2-1/JB8
SWP-ASR304-2-1/L   SWP-ASR304-2-1/T   SWP-ASR304-2-1/U
SWP-ASR304-2-1/PID
SWP-ASR305-1-0/C2  SWP-ASR305-1-0/C3  SWP-ASR305-1-0/P1
SWP-ASR305-1-0/P2  SWP-ASR305-1-0/P3  SWP-ASR305-1-0/AO1
SWP-ASR305-1-0/AO2 SWP-ASR305-1-0/AO3 SWP-ASR305-1-0/AO4
SWP-ASR305-1-0/F1  SWP-ASR305-1-0/F2  SWP-ASR305-1-0/F3
SWP-ASR305-1-0/F4  SWP-ASR305-1-0/J1  SWP-ASR305-1-0/J2
SWP-ASR305-1-0/J3  SWP-ASR305-1-0/J4  SWP-ASR305-1-0/J5
SWP-ASR305-1-0/J6  SWP-ASR305-1-0/J7  SWP-ASR305-1-0/J8
SWP-ASR305-1-0/J9  SWP-ASR305-1-0/J10 SWP-ASR305-1-0/J11
SWP-ASR305-1-0/J12 SWP-ASR305-1-0/JB1 SWP-ASR305-1-0/JB2
SWP-ASR305-1-0/JB3 SWP-ASR305-1-0/JB4 SWP-ASR305-1-0/JB5
SWP-ASR305-1-0/JB6 SWP-ASR305-1-0/JB7 SWP-ASR305-1-0/JB8
SWP-ASR305-1-0/L   SWP-ASR305-1-0/T   SWP-ASR305-1-0/U
SWP-ASR305-1-0/PID
SWP-ASR305-1-1/C2  SWP-ASR305-1-1/C3  SWP-ASR305-1-1/P1
SWP-ASR305-1-1/P2  SWP-ASR305-1-1/P3  SWP-ASR305-1-1/AO1
SWP-ASR305-1-1/AO2 SWP-ASR305-1-1/AO3 SWP-ASR305-1-1/AO4
SWP-ASR305-1-1/F1  SWP-ASR305-1-1/F2  SWP-ASR305-1-1/F3
SWP-ASR305-1-1/F4  SWP-ASR305-1-1/J1  SWP-ASR305-1-1/J2
SWP-ASR305-1-1/J3  SWP-ASR305-1-1/J4  SWP-ASR305-1-1/J5
SWP-ASR305-1-1/J6  SWP-ASR305-1-1/J7  SWP-ASR305-1-1/J8
SWP-ASR305-1-1/J9  SWP-ASR305-1-1/J10 SWP-ASR305-1-1/J11
SWP-ASR305-1-1/J12 SWP-ASR305-1-1/JB1 SWP-ASR305-1-1/JB2
SWP-ASR305-1-1/JB3 SWP-ASR305-1-1/JB4 SWP-ASR305-1-1/JB5
SWP-ASR305-1-1/JB6 SWP-ASR305-1-1/JB7 SWP-ASR305-1-1/JB8
SWP-ASR305-1-1/L   SWP-ASR305-1-1/T   SWP-ASR305-1-1/U
SWP-ASR305-1-1/PID
SWP-ASR305-2-0/C2  SWP-ASR305-2-0/C3  SWP-ASR305-2-0/P1
SWP-ASR305-2-0/P2  SWP-ASR305-2-0/P3  SWP-ASR305-2-0/AO1
SWP-ASR305-2-0/AO2 SWP-ASR305-2-0/AO3 SWP-ASR305-2-0/AO4
SWP-ASR305-2-0/F1  SWP-ASR305-2-0/F2  SWP-ASR305-2-0/F3
SWP-ASR305-2-0/F4  SWP-ASR305-2-0/J1  SWP-ASR305-2-0/J2
SWP-ASR305-2-0/J3  SWP-ASR305-2-0/J4  SWP-ASR305-2-0/J5
SWP-ASR305-2-0/J6  SWP-ASR305-2-0/J7  SWP-ASR305-2-0/J8
SWP-ASR305-2-0/J9  SWP-ASR305-2-0/J10 SWP-ASR305-2-0/J11
SWP-ASR305-2-0/J12 SWP-ASR305-2-0/JB1 SWP-ASR305-2-0/JB2
SWP-ASR305-2-0/JB3 SWP-ASR305-2-0/JB4 SWP-ASR305-2-0/JB5
SWP-ASR305-2-0/JB6 SWP-ASR305-2-0/JB7 SWP-ASR305-2-0/JB8
SWP-ASR305-2-0/L   SWP-ASR305-2-0/T   SWP-ASR305-2-0/U
SWP-ASR305-2-0/PID
SWP-ASR305-2-1/C2  SWP-ASR305-2-1/C3  SWP-ASR305-2-1/P1
SWP-ASR305-2-1/P2  SWP-ASR305-2-1/P3  SWP-ASR305-2-1/AO1
SWP-ASR305-2-1/AO2 SWP-ASR305-2-1/AO3 SWP-ASR305-2-1/AO4
SWP-ASR305-2-1/F1  SWP-ASR305-2-1/F2  SWP-ASR305-2-1/F3
SWP-ASR305-2-1/F4  SWP-ASR305-2-1/J1  SWP-ASR305-2-1/J2
SWP-ASR305-2-1/J3  SWP-ASR305-2-1/J4  SWP-ASR305-2-1/J5
SWP-ASR305-2-1/J6  SWP-ASR305-2-1/J7  SWP-ASR305-2-1/J8
SWP-ASR305-2-1/J9  SWP-ASR305-2-1/J10 SWP-ASR305-2-1/J11
SWP-ASR305-2-1/J12 SWP-ASR305-2-1/JB1 SWP-ASR305-2-1/JB2
SWP-ASR305-2-1/JB3 SWP-ASR305-2-1/JB4 SWP-ASR305-2-1/JB5
SWP-ASR305-2-1/JB6 SWP-ASR305-2-1/JB7 SWP-ASR305-2-1/JB8
SWP-ASR305-2-1/L   SWP-ASR305-2-1/T   SWP-ASR305-2-1/U
SWP-ASR305-2-1/PID
SWP-ASR306-1-0/C2  SWP-ASR306-1-0/C3  SWP-ASR306-1-0/P1
SWP-ASR306-1-0/P2  SWP-ASR306-1-0/P3  SWP-ASR306-1-0/AO1
SWP-ASR306-1-0/AO2 SWP-ASR306-1-0/AO3 SWP-ASR306-1-0/AO4
SWP-ASR306-1-0/F1  SWP-ASR306-1-0/F2  SWP-ASR306-1-0/F3
SWP-ASR306-1-0/F4  SWP-ASR306-1-0/J1  SWP-ASR306-1-0/J2
SWP-ASR306-1-0/J3  SWP-ASR306-1-0/J4  SWP-ASR306-1-0/J5
SWP-ASR306-1-0/J6  SWP-ASR306-1-0/J7  SWP-ASR306-1-0/J8
SWP-ASR306-1-0/J9  SWP-ASR306-1-0/J10 SWP-ASR306-1-0/J11
SWP-ASR306-1-0/J12 SWP-ASR306-1-0/JB1 SWP-ASR306-1-0/JB2
SWP-ASR306-1-0/JB3 SWP-ASR306-1-0/JB4 SWP-ASR306-1-0/JB5
SWP-ASR306-1-0/JB6 SWP-ASR306-1-0/JB7 SWP-ASR306-1-0/JB8
SWP-ASR306-1-0/L   SWP-ASR306-1-0/T   SWP-ASR306-1-0/U
SWP-ASR306-1-0/PID
SWP-ASR306-1-1/C2  SWP-ASR306-1-1/C3  SWP-ASR306-1-1/P1
SWP-ASR306-1-1/P2  SWP-ASR306-1-1/P3  SWP-ASR306-1-1/AO1
SWP-ASR306-1-1/AO2 SWP-ASR306-1-1/AO3 SWP-ASR306-1-1/AO4
SWP-ASR306-1-1/F1  SWP-ASR306-1-1/F2  SWP-ASR306-1-1/F3
SWP-ASR306-1-1/F4  SWP-ASR306-1-1/J1  SWP-ASR306-1-1/J2
SWP-ASR306-1-1/J3  SWP-ASR306-1-1/J4  SWP-ASR306-1-1/J5
SWP-ASR306-1-1/J6  SWP-ASR306-1-1/J7  SWP-ASR306-1-1/J8
SWP-ASR306-1-1/J9  SWP-ASR306-1-1/J10 SWP-ASR306-1-1/J11
SWP-ASR306-1-1/J12 SWP-ASR306-1-1/JB1 SWP-ASR306-1-1/JB2
SWP-ASR306-1-1/JB3 SWP-ASR306-1-1/JB4 SWP-ASR306-1-1/JB5
SWP-ASR306-1-1/JB6 SWP-ASR306-1-1/JB7 SWP-ASR306-1-1/JB8
SWP-ASR306-1-1/L   SWP-ASR306-1-1/T   SWP-ASR306-1-1/U
SWP-ASR306-1-1/PID
SWP-ASR306-2-0/C2  SWP-ASR306-2-0/C3  SWP-ASR306-2-0/P1
SWP-ASR306-2-0/P2  SWP-ASR306-2-0/P3  SWP-ASR306-2-0/AO1
SWP-ASR306-2-0/AO2 SWP-ASR306-2-0/AO3 SWP-ASR306-2-0/AO4
SWP-ASR306-2-0/F1  SWP-ASR306-2-0/F2  SWP-ASR306-2-0/F3
SWP-ASR306-2-0/F4  SWP-ASR306-2-0/J1  SWP-ASR306-2-0/J2
SWP-ASR306-2-0/J3  SWP-ASR306-2-0/J4  SWP-ASR306-2-0/J5
SWP-ASR306-2-0/J6  SWP-ASR306-2-0/J7  SWP-ASR306-2-0/J8
SWP-ASR306-2-0/J9  SWP-ASR306-2-0/J10 SWP-ASR306-2-0/J11
SWP-ASR306-2-0/J12 SWP-ASR306-2-0/JB1 SWP-ASR306-2-0/JB2
SWP-ASR306-2-0/JB3 SWP-ASR306-2-0/JB4 SWP-ASR306-2-0/JB5
SWP-ASR306-2-0/JB6 SWP-ASR306-2-0/JB7 SWP-ASR306-2-0/JB8
SWP-ASR306-2-0/L   SWP-ASR306-2-0/T   SWP-ASR306-2-0/U
SWP-ASR306-2-0/PID
SWP-ASR306-2-1/C2  SWP-ASR306-2-1/C3  SWP-ASR306-2-1/P1
SWP-ASR306-2-1/P2  SWP-ASR306-2-1/P3  SWP-ASR306-2-1/AO1
SWP-ASR306-2-1/AO2 SWP-ASR306-2-1/AO3 SWP-ASR306-2-1/AO4
SWP-ASR306-2-1/F1  SWP-ASR306-2-1/F2  SWP-ASR306-2-1/F3
SWP-ASR306-2-1/F4  SWP-ASR306-2-1/J1  SWP-ASR306-2-1/J2
SWP-ASR306-2-1/J3  SWP-ASR306-2-1/J4  SWP-ASR306-2-1/J5
SWP-ASR306-2-1/J6  SWP-ASR306-2-1/J7  SWP-ASR306-2-1/J8
SWP-ASR306-2-1/J9  SWP-ASR306-2-1/J10 SWP-ASR306-2-1/J11
SWP-ASR306-2-1/J12 SWP-ASR306-2-1/JB1 SWP-ASR306-2-1/JB2
SWP-ASR306-2-1/JB3 SWP-ASR306-2-1/JB4 SWP-ASR306-2-1/JB5
SWP-ASR306-2-1/JB6 SWP-ASR306-2-1/JB7 SWP-ASR306-2-1/JB8
SWP-ASR306-2-1/L   SWP-ASR306-2-1/T   SWP-ASR306-2-1/U
SWP-ASR306-2-1/PID
SWP-ASR307-1-0/C2  SWP-ASR307-1-0/C3  SWP-ASR307-1-0/P1
SWP-ASR307-1-0/P2  SWP-ASR307-1-0/P3  SWP-ASR307-1-0/AO1
SWP-ASR307-1-0/AO2 SWP-ASR307-1-0/AO3 SWP-ASR307-1-0/AO4
SWP-ASR307-1-0/F1  SWP-ASR307-1-0/F2  SWP-ASR307-1-0/F3
SWP-ASR307-1-0/F4  SWP-ASR307-1-0/J1  SWP-ASR307-1-0/J2
SWP-ASR307-1-0/J3  SWP-ASR307-1-0/J4  SWP-ASR307-1-0/J5
SWP-ASR307-1-0/J6  SWP-ASR307-1-0/J7  SWP-ASR307-1-0/J8
SWP-ASR307-1-0/J9  SWP-ASR307-1-0/J10 SWP-ASR307-1-0/J11
SWP-ASR307-1-0/J12 SWP-ASR307-1-0/JB1 SWP-ASR307-1-0/JB2
SWP-ASR307-1-0/JB3 SWP-ASR307-1-0/JB4 SWP-ASR307-1-0/JB5
SWP-ASR307-1-0/JB6 SWP-ASR307-1-0/JB7 SWP-ASR307-1-0/JB8
SWP-ASR307-1-0/L   SWP-ASR307-1-0/T   SWP-ASR307-1-0/U
SWP-ASR307-1-0/PID
SWP-ASR307-1-1/C2  SWP-ASR307-1-1/C3  SWP-ASR307-1-1/P1
SWP-ASR307-1-1/P2  SWP-ASR307-1-1/P3  SWP-ASR307-1-1/AO1
SWP-ASR307-1-1/AO2 SWP-ASR307-1-1/AO3 SWP-ASR307-1-1/AO4
SWP-ASR307-1-1/F1  SWP-ASR307-1-1/F2  SWP-ASR307-1-1/F3
SWP-ASR307-1-1/F4  SWP-ASR307-1-1/J1  SWP-ASR307-1-1/J2
SWP-ASR307-1-1/J3  SWP-ASR307-1-1/J4  SWP-ASR307-1-1/J5
SWP-ASR307-1-1/J6  SWP-ASR307-1-1/J7  SWP-ASR307-1-1/J8
SWP-ASR307-1-1/J9  SWP-ASR307-1-1/J10 SWP-ASR307-1-1/J11
SWP-ASR307-1-1/J12 SWP-ASR307-1-1/JB1 SWP-ASR307-1-1/JB2
SWP-ASR307-1-1/JB3 SWP-ASR307-1-1/JB4 SWP-ASR307-1-1/JB5
SWP-ASR307-1-1/JB6 SWP-ASR307-1-1/JB7 SWP-ASR307-1-1/JB8
SWP-ASR307-1-1/L   SWP-ASR307-1-1/T   SWP-ASR307-1-1/U
SWP-ASR307-1-1/PID
SWP-ASR307-2-0/C2  SWP-ASR307-2-0/C3  SWP-ASR307-2-0/P1
SWP-ASR307-2-0/P2  SWP-ASR307-2-0/P3  SWP-ASR307-2-0/AO1
SWP-ASR307-2-0/AO2 SWP-ASR307-2-0/AO3 SWP-ASR307-2-0/AO4
SWP-ASR307-2-0/F1  SWP-ASR307-2-0/F2  SWP-ASR307-2-0/F3
SWP-ASR307-2-0/F4  SWP-ASR307-2-0/J1  SWP-ASR307-2-0/J2
SWP-ASR307-2-0/J3  SWP-ASR307-2-0/J4  SWP-ASR307-2-0/J5
SWP-ASR307-2-0/J6  SWP-ASR307-2-0/J7  SWP-ASR307-2-0/J8
SWP-ASR307-2-0/J9  SWP-ASR307-2-0/J10 SWP-ASR307-2-0/J11
SWP-ASR307-2-0/J12 SWP-ASR307-2-0/JB1 SWP-ASR307-2-0/JB2
SWP-ASR307-2-0/JB3 SWP-ASR307-2-0/JB4 SWP-ASR307-2-0/JB5
SWP-ASR307-2-0/JB6 SWP-ASR307-2-0/JB7 SWP-ASR307-2-0/JB8
SWP-ASR307-2-0/L   SWP-ASR307-2-0/T   SWP-ASR307-2-0/U
SWP-ASR307-2-0/PID
SWP-ASR307-2-1/C2  SWP-ASR307-2-1/C3  SWP-ASR307-2-1/P1
SWP-ASR307-2-1/P2  SWP-ASR307-2-1/P3  SWP-ASR307-2-1/AO1
SWP-ASR307-2-1/AO2 SWP-ASR307-2-1/AO3 SWP-ASR307-2-1/AO4
SWP-ASR307-2-1/F1  SWP-ASR307-2-1/F2  SWP-ASR307-2-1/F3
SWP-ASR307-2-1/F4  SWP-ASR307-2-1/J1  SWP-ASR307-2-1/J2
SWP-ASR307-2-1/J3  SWP-ASR307-2-1/J4  SWP-ASR307-2-1/J5
SWP-ASR307-2-1/J6  SWP-ASR307-2-1/J7  SWP-ASR307-2-1/J8
SWP-ASR307-2-1/J9  SWP-ASR307-2-1/J10 SWP-ASR307-2-1/J11
SWP-ASR307-2-1/J12 SWP-ASR307-2-1/JB1 SWP-ASR307-2-1/JB2
SWP-ASR307-2-1/JB3 SWP-ASR307-2-1/JB4 SWP-ASR307-2-1/JB5
SWP-ASR307-2-1/JB6 SWP-ASR307-2-1/JB7 SWP-ASR307-2-1/JB8
SWP-ASR307-2-1/L   SWP-ASR307-2-1/T   SWP-ASR307-2-1/U
SWP-ASR307-2-1/PID
SWP-ASR308-1-0/C2  SWP-ASR308-1-0/C3  SWP-ASR308-1-0/P1
SWP-ASR308-1-0/P2  SWP-ASR308-1-0/P3  SWP-ASR308-1-0/AO1
SWP-ASR308-1-0/AO2 SWP-ASR308-1-0/AO3 SWP-ASR308-1-0/AO4
SWP-ASR308-1-0/F1  SWP-ASR308-1-0/F2  SWP-ASR308-1-0/F3
SWP-ASR308-1-0/F4  SWP-ASR308-1-0/J1  SWP-ASR308-1-0/J2
SWP-ASR308-1-0/J3  SWP-ASR308-1-0/J4  SWP-ASR308-1-0/J5
SWP-ASR308-1-0/J6  SWP-ASR308-1-0/J7  SWP-ASR308-1-0/J8
SWP-ASR308-1-0/J9  SWP-ASR308-1-0/J10 SWP-ASR308-1-0/J11
SWP-ASR308-1-0/J12 SWP-ASR308-1-0/JB1 SWP-ASR308-1-0/JB2
SWP-ASR308-1-0/JB3 SWP-ASR308-1-0/JB4 SWP-ASR308-1-0/JB5
SWP-ASR308-1-0/JB6 SWP-ASR308-1-0/JB7 SWP-ASR308-1-0/JB8
SWP-ASR308-1-0/L   SWP-ASR308-1-0/T   SWP-ASR308-1-0/U
SWP-ASR308-1-0/PID
SWP-ASR308-1-1/C2  SWP-ASR308-1-1/C3  SWP-ASR308-1-1/P1
SWP-ASR308-1-1/P2  SWP-ASR308-1-1/P3  SWP-ASR308-1-1/AO1
SWP-ASR308-1-1/AO2 SWP-ASR308-1-1/AO3 SWP-ASR308-1-1/AO4
SWP-ASR308-1-1/F1  SWP-ASR308-1-1/F2  SWP-ASR308-1-1/F3
SWP-ASR308-1-1/F4  SWP-ASR308-1-1/J1  SWP-ASR308-1-1/J2
SWP-ASR308-1-1/J3  SWP-ASR308-1-1/J4  SWP-ASR308-1-1/J5
SWP-ASR308-1-1/J6  SWP-ASR308-1-1/J7  SWP-ASR308-1-1/J8
SWP-ASR308-1-1/J9  SWP-ASR308-1-1/J10 SWP-ASR308-1-1/J11
SWP-ASR308-1-1/J12 SWP-ASR308-1-1/JB1 SWP-ASR308-1-1/JB2
SWP-ASR308-1-1/JB3 SWP-ASR308-1-1/JB4 SWP-ASR308-1-1/JB5
SWP-ASR308-1-1/JB6 SWP-ASR308-1-1/JB7 SWP-ASR308-1-1/JB8
SWP-ASR308-1-1/L   SWP-ASR308-1-1/T   SWP-ASR308-1-1/U
SWP-ASR308-1-1/PID
SWP-ASR308-2-0/C2  SWP-ASR308-2-0/C3  SWP-ASR308-2-0/P1
SWP-ASR308-2-0/P2  SWP-ASR308-2-0/P3  SWP-ASR308-2-0/AO1
SWP-ASR308-2-0/AO2 SWP-ASR308-2-0/AO3 SWP-ASR308-2-0/AO4
SWP-ASR308-2-0/F1  SWP-ASR308-2-0/F2  SWP-ASR308-2-0/F3
SWP-ASR308-2-0/F4  SWP-ASR308-2-0/J1  SWP-ASR308-2-0/J2
SWP-ASR308-2-0/J3  SWP-ASR308-2-0/J4  SWP-ASR308-2-0/J5
SWP-ASR308-2-0/J6  SWP-ASR308-2-0/J7  SWP-ASR308-2-0/J8
SWP-ASR308-2-0/J9  SWP-ASR308-2-0/J10 SWP-ASR308-2-0/J11
SWP-ASR308-2-0/J12 SWP-ASR308-2-0/JB1 SWP-ASR308-2-0/JB2
SWP-ASR308-2-0/JB3 SWP-ASR308-2-0/JB4 SWP-ASR308-2-0/JB5
SWP-ASR308-2-0/JB6 SWP-ASR308-2-0/JB7 SWP-ASR308-2-0/JB8
SWP-ASR308-2-0/L   SWP-ASR308-2-0/T   SWP-ASR308-2-0/U
SWP-ASR308-2-0/PID
SWP-ASR308-2-1/C2  SWP-ASR308-2-1/C3  SWP-ASR308-2-1/P1
SWP-ASR308-2-1/P2  SWP-ASR308-2-1/P3  SWP-ASR308-2-1/AO1
SWP-ASR308-2-1/AO2 SWP-ASR308-2-1/AO3 SWP-ASR308-2-1/AO4
SWP-ASR308-2-1/F1  SWP-ASR308-2-1/F2  SWP-ASR308-2-1/F3
SWP-ASR308-2-1/F4  SWP-ASR308-2-1/J1  SWP-ASR308-2-1/J2
SWP-ASR308-2-1/J3  SWP-ASR308-2-1/J4  SWP-ASR308-2-1/J5
SWP-ASR308-2-1/J6  SWP-ASR308-2-1/J7  SWP-ASR308-2-1/J8
SWP-ASR308-2-1/J9  SWP-ASR308-2-1/J10 SWP-ASR308-2-1/J11
SWP-ASR308-2-1/J12 SWP-ASR308-2-1/JB1 SWP-ASR308-2-1/JB2
SWP-ASR308-2-1/JB3 SWP-ASR308-2-1/JB4 SWP-ASR308-2-1/JB5
SWP-ASR308-2-1/JB6 SWP-ASR308-2-1/JB7 SWP-ASR308-2-1/JB8
SWP-ASR308-2-1/L   SWP-ASR308-2-1/T   SWP-ASR308-2-1/U
SWP-ASR308-2-1/PID



*1  用戶在選擇通訊時可以選擇RS-232或RS-485通訊。儀表通訊接口標配為9芯板式針，如用戶需9芯板式孔接口可在定制時說明。若要同時選擇RS-232和RS-485兩路通訊請在定制時說明。
*2 必須選用40字符/行(如TPμP-A40) 的微型打印機。
*3 使用微型打印機時，必須配置RS-232 (/C2)接口。
*4 儀表若帶/AO后，全可切輸入信號多允許4路（否則可達8路）。
*5 如果用戶選配通訊或U盤時，可配送分析軟件。
*6 如用戶有特殊功能開發需求的可與我公司聯系，可單獨定制儀表功能，xxx為特殊定制功能的編碼。
*7 多帶6路積算功能。
有特殊功能開發需求的可以與我公司聯系，可單獨定制儀表功能，xxx為特殊定制功能的編碼。
型 號
規格代碼
附加規格代碼
說 明
SWP-ASR3
□□ -□ -□
   /□□□

采集通道數
01～12

可選01 ~12通道 *1
存儲器容量
（MB）
-1

32（標配）
-2

64
-3

128
顯示語言
-0

簡體中文（標配）
-1

英文
-2

繁體中文
-3

多語言版（可在簡、繁、英之間切換）
附加規格
   /C2
*2 *3 *4 *6RS-232接口
   /C3
*2 *4 *6RS-485接口
   /P（1-3）
DC 24V饋電
   /AO（1-4）
模擬量輸出路數 *5
   /F（1-4）
頻率輸入路數 *5
   /J（1-12）
（常開觸點）繼電器數
   /JB（1-8）
（常開、常閉觸點）繼電器數
   /L
帶流量積算功能*7
   /T
帶天然氣運算功能
   /U
帶通用USB接口 *6
   /PID
帶PID控制功能
   /Dxxx
為客戶訂制特殊功能 *6

本頁產品地址：http://18bearing.com/sell/show-2049921.html
免責聲明：以上所展示的[SWP-ASR302-1-0 昌暉真彩無紙記錄儀]信息由會員[鄭州亞比蘭儀器儀表有限公司]自行提供，內容的真實性、準確性和合法性由發布會員負責。
[給覽網]對此不承擔任何責任。
友情提醒：為規避購買風險，建議您在購買相關產品前務必確認供應商資質及產品質量！

發布詢價單

廠商其他產品

您最近瀏覽過的產品

產品分類

  • 暫無分類

相關技術文章

沒有合適的產品？是否在線詢價？
詢價標題
聯系人
電話
主要內容
驗證碼
精品国模一区二区三区,一区二区三区无码精油的作用,中文字幕亚洲欧美日韩在线不卡 ,日韩人妻一区二区三区蜜桃视频 WWW夜插内射视频网站| 久久精品国产网红主播| 色欲AV午夜精品AV| 日本免费无码一区二区到五区| 少妇高潮喷水久久久影院| 人人爽人人爽人人片AV免费 | 成人做受视频试看60秒| 色婷婷亚洲婷婷七月中文字幕| 国产第一页屁屁影院| 无码免费一区二区三区| 麻豆精品国产精华液好用吗| 国产探花在线精品一区二区| 亚洲国产AV一区二区三区| 97精品一区二区视频在线观看| 99久久免费国产精品| 日本护士XXXX做爰| 亚洲AV中文无码乱人伦在线观看| 性AV盈盈无码天堂| 成人夜色视频网站在线观看| 熟妇中国 @TUBE UMTV| 亚洲精品无码MV在线观看网站| 蜜桃成人无码区免费视频网站| 国产免费一区二区视频| 无码精品人妻一区二区三区AV| 99久久免费精品高清特色大片| 新婚之夜玩弄人妻系列| 国模无码视频一区二区三区| 亚洲精品无码久久久久秋霞 | 久久久久国产精品无套专区| 扒开美女内裤狂揉下部| 久久精品国产亚洲AV大全| 国产伦精品一区二区三区| 欧美日韩成人在线| 亚洲最大的成人网| 亚洲国产成人片在线观看无码| 久久97精品久久久久久久不卡| 久久99国产精品久久99果冻传媒| 中文字幕人妻一区二区三区熟女| 成人AAA片一区国产精品| 日本护士野外XXXHD| 人人妻人人澡人人爽精品日本 |
